Recovery systems - Rubber Ball Nose

This has got to be one of the simplest and easiest recovery methods for small rockets.


This works best with bottles that have a concave bottom although there is nothing to stop you from using other shapes if you provide enough support for the ball.

The bottles that I used were not fizzy pop bottles but were black current drink bottles. These happened to be made from PET, using the same blanks that are used for pop bottles - they survived pressure testing to 140 psi. They grew slightly the first time but during subsequent pressurisations the bottles remained stable.

The growth took place at the ridges around the bottle where the label went and where it was designed to be held - the ridges making the bottle more rigid in the shop as it was not pressurused. These ridges simply strightened out on taking the bottle up to high pressure for the first time.

Note, only pressure test bottles when they are completely full of water - this way, if it should fail, there is not a lot of energy held in the water waiting to be released.


All that you need to build this is . . .

  • One bottle rocket with a concave base;
  • Some gaffer tape;
  • Some glue (I tried it with cool melt glue); and,
  • A rubber ball (I used some tennis balls).

Make sure that the bottle and the ball are clean and dry. Put some glue onto the bottom of the bottle and quickly push the ball into place and hold, making sure that it is coaxial with the body of the rocket. If the size of the ball that you use matches with the curvature of the concave bottom, this should be fairly easy.

Once the glue has hardened (around 30 seconds or so for cool melt adhesive), put some strips of gaffer tape around the bottle and the base of the ball making it reasonably smooth in an aerodynamic sort of way (this is really high-tech stuff).


Below are the results of this project. Having made them myself, I would recommend this as an effective and simple enough recovery method for children. The fact that you get a symmetrical, aerodynamic nose cone is the icing on the cake.

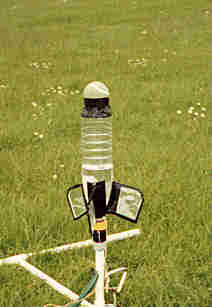

Version 1 of the design.

With just tape and glue holding the ball in place.

This worked nicely but after around 4 or 5 landings from around 200 feet, the ball managed to fall away so I decided to put tape across the top of the ball.

Version 2

This is it with the ball taped all of the way across. This design was stable and I had no trouble with it.

One thing to note is that when the ball is compressed on landing, the circumference will increase and if the tape you are using is not resilient enough, it may split.

This was launched from the copper tube launcher and shows that from the greater height (around 275 feet mainly from using higher pressures), even a tennis ball cannot prevent crumpling.

Around halfway along the body, you can just about make out the kink in the bottle - the lines at regular intervals are strengthening lines put their by the manufacturer as this bottle did not contain a fizzy drink.
