Nylon 'Parafoil' Parachute Rib Plans

Rather than print off these two plans from the browser, right-click the mouse and then select 'Save Picture As...' from the menu.

They are scanned in so that if you print them out at 75 dpi, you should get the right scale. Alterately, you could print them out at some other scale and then blow them up on a photocopier. The important thing to note is that printing from the browser will not give you reliable results.

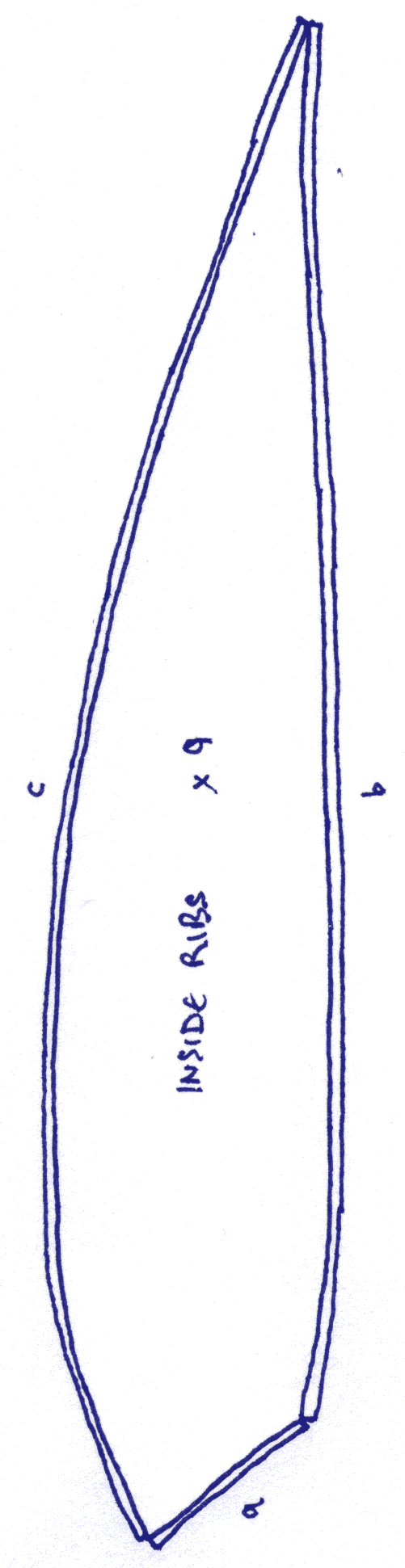

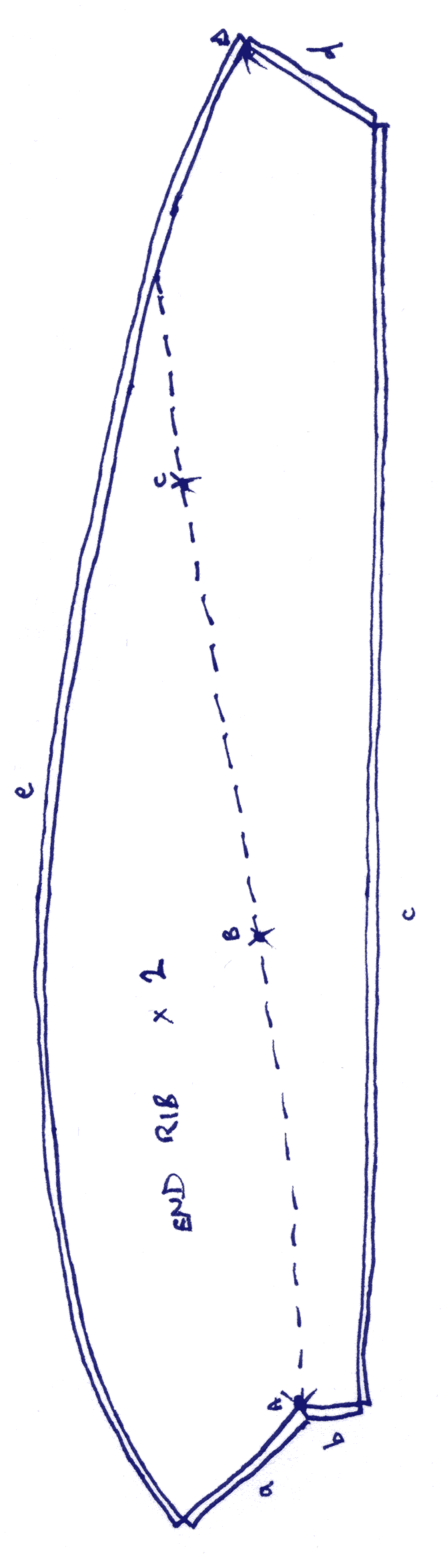

Inside rib End rib
