Input Parameters - Initial

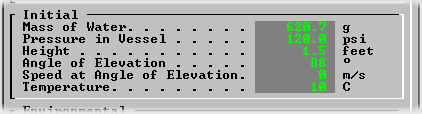

The computer model needs to know the state of the rocket before it was launched. Things such as how much water was in the rocket will affect the amount and duration of thrust that can be produced and so on.



(The parameter marked * do not appear in the Novice version)

Mass of Water (g) or Weight of Water (g) This is the amount of water that gets pushed out of the nozzle during the flight and is usually the same as the amount of water that you put in the rocket. The only time that this will be different will be if you are using a method of joining several bottles together and there are places that water can collect. The mass of this water is effectively added to the Weight of the Rocket in the Rocket Parameters input field.

There are a number of ways of measuring the water that goes into the rocket:

  Weigh the rocket empty and then again with the required amount of water added. Make a mark on the side of the rocket (in pen on a piece of tape rather than scratching the level onto the pressure vessel) both for the rocket in the inverted, filling position (so that you know when you have put enough in without having to turn it over each time) and then the right way up with a launch tube in the nozzle (so that you can see on the launcher if you have lost too much water for some reason).

In the field, you simply invert the rocket and pour the water in, up to the mark. Turn it the right way up on the launcher and you can see if you still have enough.

  Measure it in with a jug. Either make marks on the side as described above or take the jug into the field with you.
  Note that the more water you put in, the less volume of air will be available and the greater the weight the nozzle has to lift. There comes a point where, with small nozzles and increasing amounts of water, that the initial acceleration is high but then falls off quickly as the pressure falls. The rocket can then start to slow down. Shortly after this, the weight is reduced sufficiently and the small amount of thrust left can produce a `kick' at the end of the water thrust. If the duration of the slow part of this process was sufficiently long, even a near vertical flight will allow the rocket to be angled fairly low (although at quite an altitude) by the time this `kick' manifests itself. In this case, the rocket can fly off quite a distance.
Pressure in Vessel (BarG) or Pressure in Vessel (psig) The more air you pump in, the greater the force of the liquid that comes out of the nozzle. Also, once the water has ran out, the air itself will provide some extra thrust.

However, you cannot just pump higher and higher pressures as the water rocket will fail structurally at some pressure. Always pressure test the rocket, the launcher and any hose that you use in addition to making sure that the launcher will hold a rocket down at that pressure.

The pressure value is the pressure measured on a pressure gauge, that is to say that 10 psi on the gauge (10 psig) is actually 10 psi + atmospheric pressure (a total of around 24 psia) or a pressure of 0.7 Bar on the gauge (0.7BarG) is actually 0.7 Bar + atmospheric pressure (a total of around 1.7BarA). Atmospheric pressure is around 14.6 psi(a) or 1.01325 Bar(A).

The absolute pressure (that measured against a vacuum) is denoted psia or BarA whereas the pressure relative to atmospheric pressure (that measured with a gauge which has atmospheric pressure on the outside) is denoted psig or BarG.

The computer model automatically adds in atmospheric pressure so you only have to worry about the pressure on your gauge.

Height (m) or Height (feet) This is the initial height of the rocket. It only becomes significant if you are launching from a great height or are using large parachutes. Most launchers will hold the bottom of the rocket at a height of between 6" and 1'6" (0.15m and 0.45m).

If you are investigating the potential of a second stage rocket, you can put the height that it is released from the booster in here along with the speed and angle below.

Angle of Elevation (° - degrees) There is no such thing as perfectly vertical, most launchers being somewhere around the 88º or 89º mark unless you use a plumb bob or are aiming it away from the launcher as you would in a competition for maximum downrange distance. This parameter allows you to see the effect on a slight tilt from vertical which can be very large with small nozzles and a lot of water.

If you are investigating the potential of a second stage rocket, you can put the angle at the point of release, along with the height that it is released from the booster (above) and the speed below.

Speed at Angle of Elevation (m/s) This is the speed that the rocket is flying at the beginning of the flight. This will normally be zero but if you are using a hand held launcher and move the rocket upwards while releasing it, you should add that speed in as well. Moving the rocket during launch means that the rocket reaches a stable speed sooner but care must be taken as irregular movements can cause waves or turbulence in the water inside the rocket which can lead to unstable flow of the water.

If you are investigating the potential of a second stage rocket, you can put the speed that it is released from the booster in here along with the height and angle above.

* Temperature (C) The temperature of the pressurised air inside the rocket is considered here as it affects the total amount of air in the system and therefore how much force it will be able to exert on the water during thrust together with the amount of extra force produced when the air escapes out of the nozzle after the water.

When air is compressed quickly so that there is little opportunity for heat to escape (this is adiabatic compression), the air heats up considerably. This hot air then passes along the air line to the rocket where it then either bubbles up through the water or it passes up the launch tube and into the head-space above the water. It then stays in the rocket for a few tens of seconds until you release the rocket from the launcher.

Between being heated up during the initial stage of compression to the time of release, the air has had plenty of time to cool down and reach (or at least approach) equilibrium with its surroundings. If you are using water at ambient temperature, the cooling effect of the high surface area of the air line and the bubbling through the water will bring the air temperature towards the temperature of the water. If you are launching in the snow and using warm water, the cooling effect of the snow on the air line will bring down the temperature.

Essentially, the temperature of the air in the rocket is not going to be greatly different from the temperature of the water that you are using.
