3 Dimensional Optimisation - Index

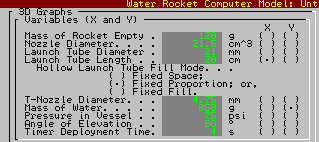

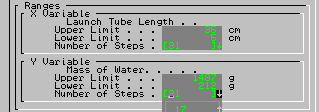

The 3 Dimensional Optimisation allows you to select two input variables and, using an output variable as the success criterion, find an optimum value for each of them. The output of this process is in the form of a graph which uses colour as the third dimension, plotted against the two input variables of your choice. The actual optimisation can be performed automatically or graphs can be produced that show bands of colour indicating performance for a particular pair of input variable values.

Click on the menu on the left or on and area of the screen shot above.
