Input Parameters - Launch Tube


When you release the rocket, water is expelled in order to accelerate the rocket. If you use a launch tube, that is to say, a tube that fits into the nozzle of the rocket and is fixed to the launcher, you can get a prolonged period of thrust. If the launch tube is almost a tight fit, this acceleration will not allow a significant amount of water to be lost, only a slight loss of pressure as the volume of air increases in order to take up the new volume created by the withdrawal of the launch tube.

A launch tube can also be hollow so that it acts as a second (although small) reservoir of air so that the pressure drop during launch is not so great.

If you still want to use a restricted bore nozzle as well as a launch tube, you can mount this on the end of the launch tube so that it slots in place and seals as the rocket reaches the end of the launch tube. This smaller nozzle is called a T-nozzle. If you have mounted the T-nozzle on the end of the launch tube, you must make some holes in the side of the launch tube so that you can pressurise the rocket without blowing the T-nozzle off the end of the launch tube. However, if you do this, the extra reservoir of air afforded by the hollow launch tube will be lost to the rocket earlier on in its travel up the launch tube.

Check the examples at the bottom of this page if you have any doubts.

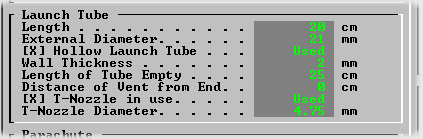

If you checked the Launch Tube in use checkbox in the Rocket section, you will be able to edit the following values (Parameters marked * do not appear in the Novice version) . . .

Length (cm) The length of the launch tube is the distance the rocket has to travel before the end of its nozzle either clears the end of the launch tube or the t-nozzle engages - the T-nozzle is the restricted bore nozzle that seals into the neck of the bottle, pictured on the right, sitting on the end of the launch tube.

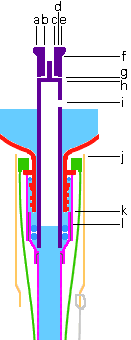

Without a T-nozzle fitted it is the distance g-k (end of launch tube to end of nozzle). With a T-nozzle, it is the distance f-j seat of t-nozzle to restriction in the neck of the bottle.

Throughout this travel, the launch tube is the same diameter and the thrust to the rocket consists of: the small amount of water escaping between the nozzle and the launch tube; and, the push on the end of the tube by the pressure in the rocket. Therefore, with a snugly fitting launch tube, thrust can be generated with little loss of water and only a slight loss of pressure in the rocket.

External Diameter (mm) This is the diameter of the launch tube, distance a-e. It determines the amount of water that escapes and the amount of thrust provided by the launch tube. Needless to say that it cannot be greater than the internal diameter of the rocket's nozzle.
* [X] Hollow Launch Tube Selecting a hollow launch tube will allow the model to take into consideration the quantity of air inside the launch tube. This air effectively adds to the volume of air inside the rocket whilst it is on the launch tube therefore the pressure reduction is less than for a solid launch tube with the same rocket and water.
* Wall Thickness (mm) If your launch tube is hollow, you can tell the model the thickness of the walls of the tubing that the launch tube is made from. On the diagram on the right, this is length d-e.
* Length of Tube Empty (cm) The model also needs the length of tubing that is empty (length h-l) so that it can calculate the volume of air that is inside the launch tube.

As it is likely that your launch tube will be filled partly with water, the best that you can do is to estimate this length. Note that in an open ended launch tube, g and h are in the same place.

* Distance of Vent from End (cm) In the case where you do not have a T-nozzle and the end of the launch tube is open to the inside of the rocket, this distance is zero.

If the end of the launch tube is blocked off and you have holes in the side, it will depend upon whether or not you are using a T-nozzle.

With a T-nozzle, the distance that the rocket has to travel between the holes being blocked off and the end of the effective launch tube is length f-i.

Without a t-nozzle, it is g-i + j-k. g-i is the distance between the holes and the end of the launch tube and j-k is the distance the nozzle still has to travel to the end of the launch tube once the holes have been blocked.

Note that in the diagram, the length of the launch tube is quite short. This is to make the drawing clear without taking up too much room. In reality, you would have a longer launch tube but you would position the holes as close to the end as possible which is why it is this distance that is specified in order to make calculations involving changing the length of the launch tube more realistic.

One other thing to note is that these distances (Length; Length of Tube Empty; and, Distance of Vent from End) need only be measured to the nearest centimetre as the effects of other, out of control variables will have a greater effect on the end result than a few millimetres error in launch tube length.

* [X] T-Nozzle in use A T-nozzle allows you to get the best out of both worlds by having the highly efficient initial acceleration from the launch tube but also allowing you to have a smaller, more efficient nozzle.

As you can see in the diagram, the T-nozzle sits on top of the launch tube ready to seal off the wide-bore nozzle as soon as the rocket gets to the end of the launch tube. Once this has happened, the smaller nozzle allows the water to escape over a longer period which is more efficient.

You will see how to find the optimum diameter for the T-nozzle using 3 Dimensional Optimisation on the model.

Select T-Nozzle in use if you are using a T-nozzle.

* T-Nozzle Diameter (mm) The value you put into the T-nozzle Diameter is distance b-c and represents the diameter of the nozzle the rocket changes to automatically at the end of the launch tube.
Examples . . .
Launch Tube in use (20cm) Normal Bottle (3cm long neck)
Hollow, closed, holes ½ way with t-nozzle

Hollow, closed, holes ½ way

Hollow, open ended

Solid Tube

Length (cm) 20   20   20   20

External Diameter (mm) 21.5   21.5   21.5   21.5

Wall Thickness (mm) na   1.5   1.5   1.5

Length Tube Empty (cm) na   20   20   20

Distance from end of tube (cm) na   0   13   13

T-nozzle diameter (mm) na   na   na   4
